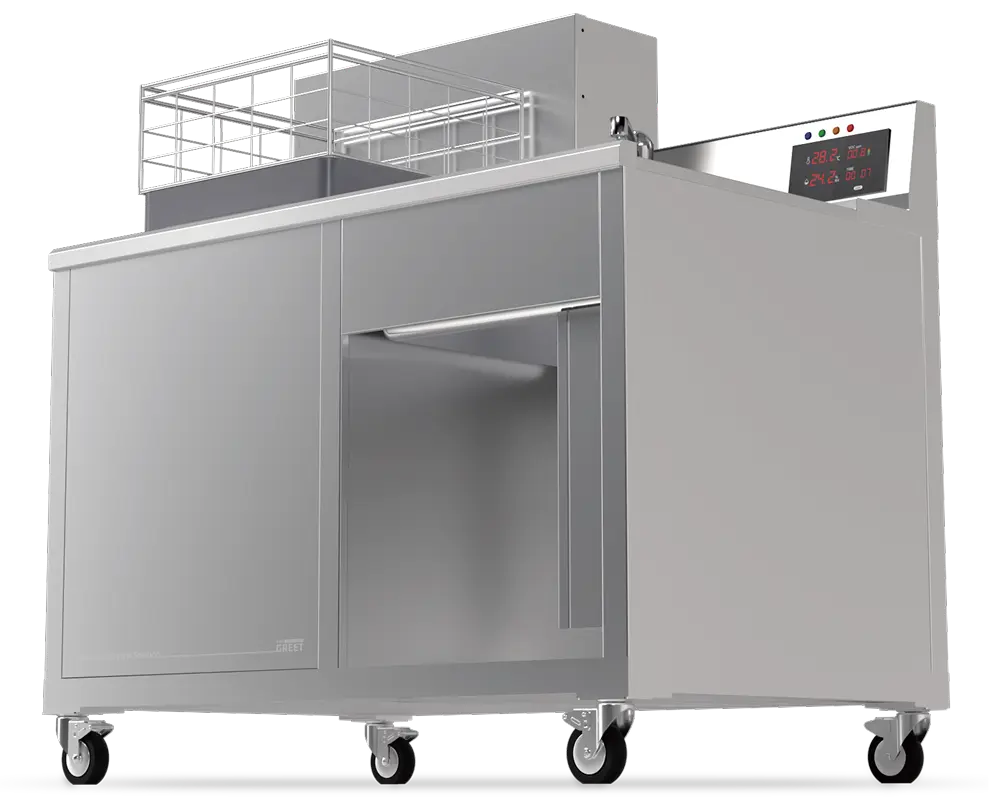

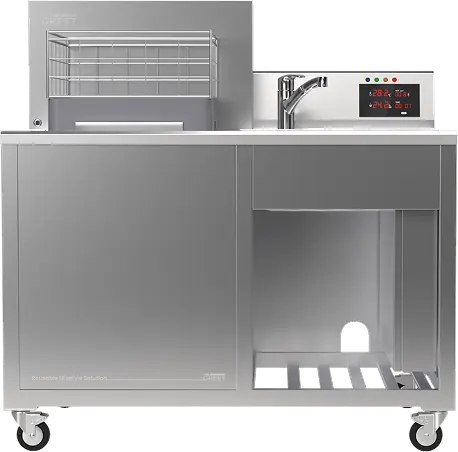

Compact Design
Combines essential washing
functions in one unit.
|SMART Washing Module
SMARTWashing
Module
Designed to reduce labor, save water, and deliver consistent
washing performance in compact kitchen environments.
Efficient Workflow
Fits into the current washing area.

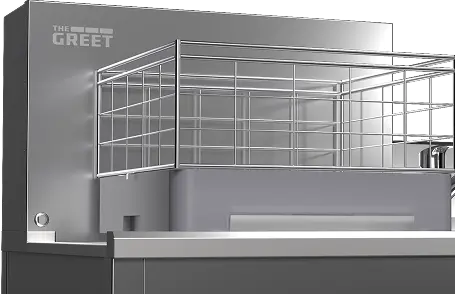

Simple Installation
Uses existing water and
drainage connections.
Built for
Workflow.
Every commercial kitchen has a different layout,
but the need for efficient washing remains the same.

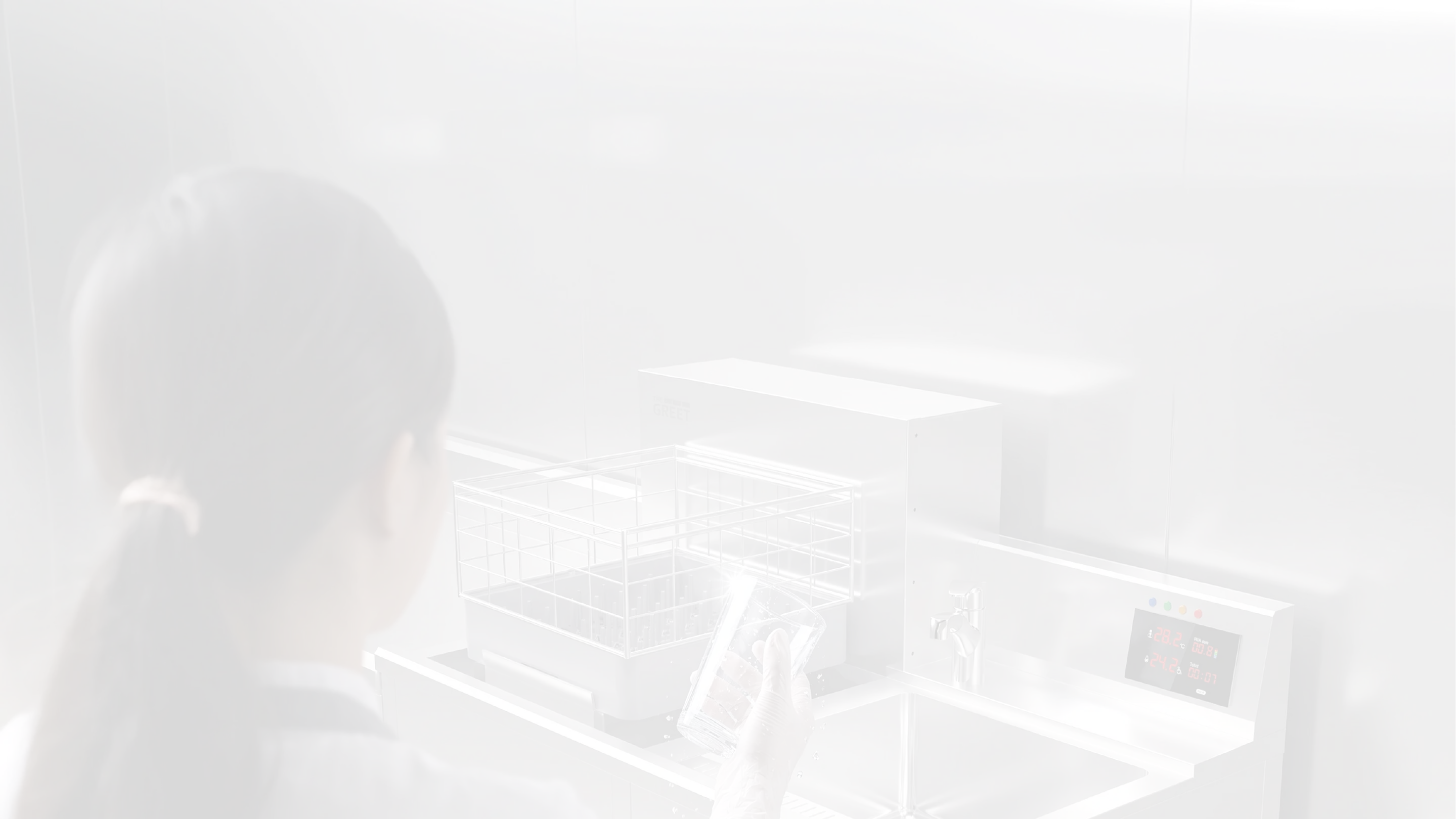

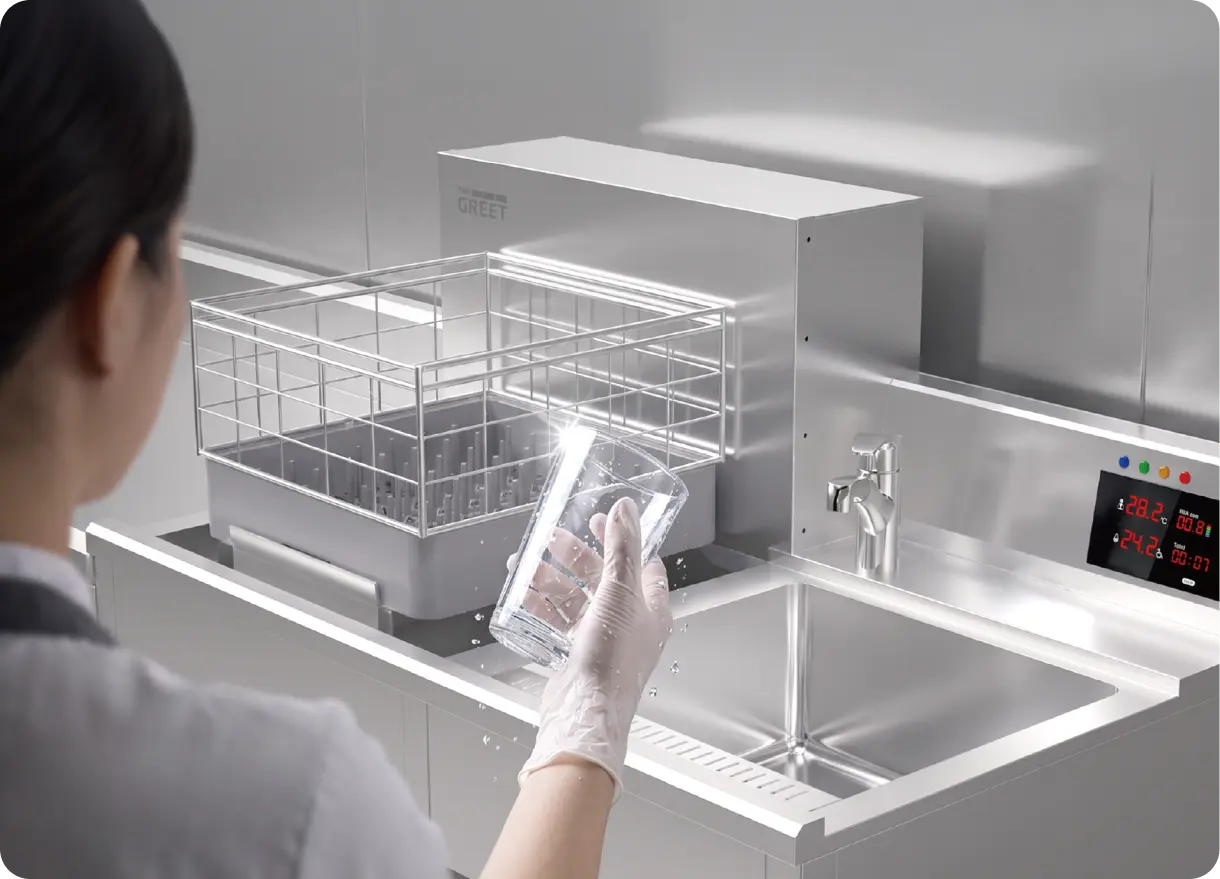

SMART Washing Module is designed to fit into existing
kitchen environments, simplifying daily washing operations
without requiring a completely new workspace.

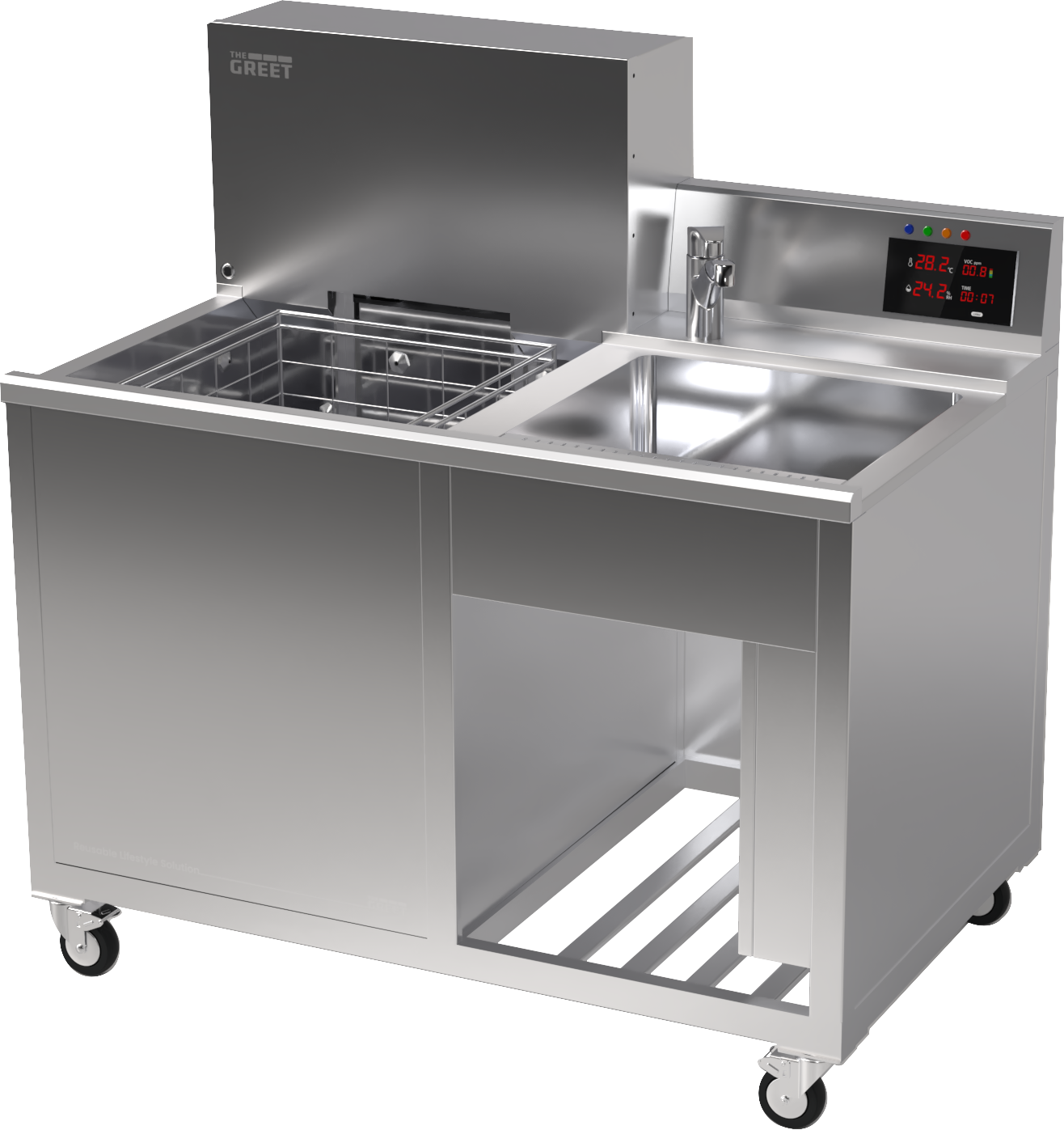

Less Labor.
Less Water.
Less Time.
SMART Washing Module helps reduce water consumption, washing time,
and repetitive manual work through a streamlined washing process.
87%Lower Labor Cost
76%Less Water Use
73%Less Washing Time

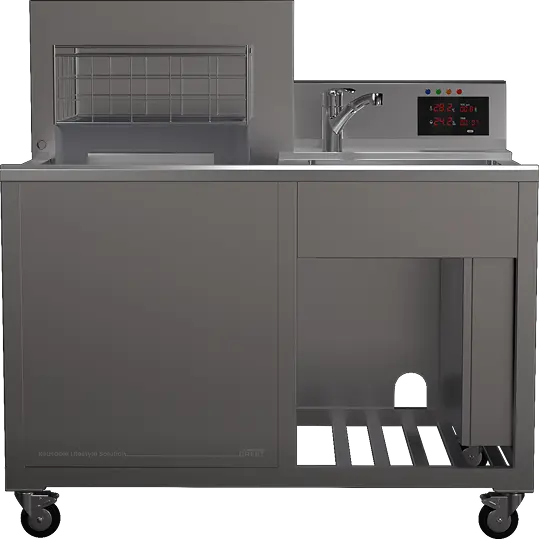

Three Steps.
Zero Guesswork.
3
21
A simple three-stage workflow ensures consistent
washing quality while reducing manual handling.
Each stage is designed for efficient operation
throughout the washing cycle.
1. Pre-Treatment (optional)
Only for heavy grease or leftover food - otherwise, skip straight to soak.

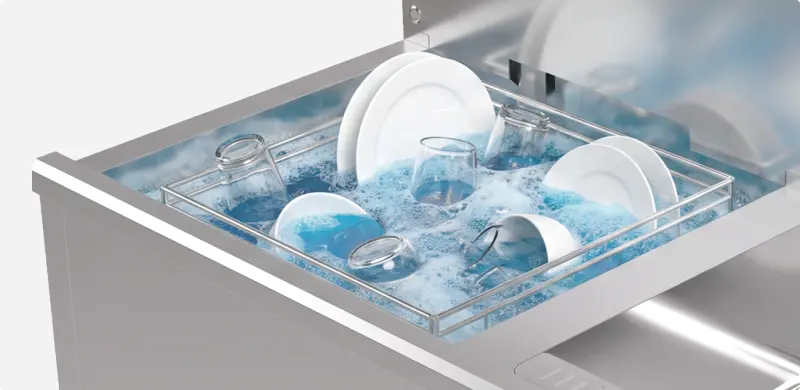

2. Soak
1. Add the dedicated detergent. 2. Soak at 55–60°C for 3–7 minutes, depending on the level of contamination. 3. Automatic lift after soaking.

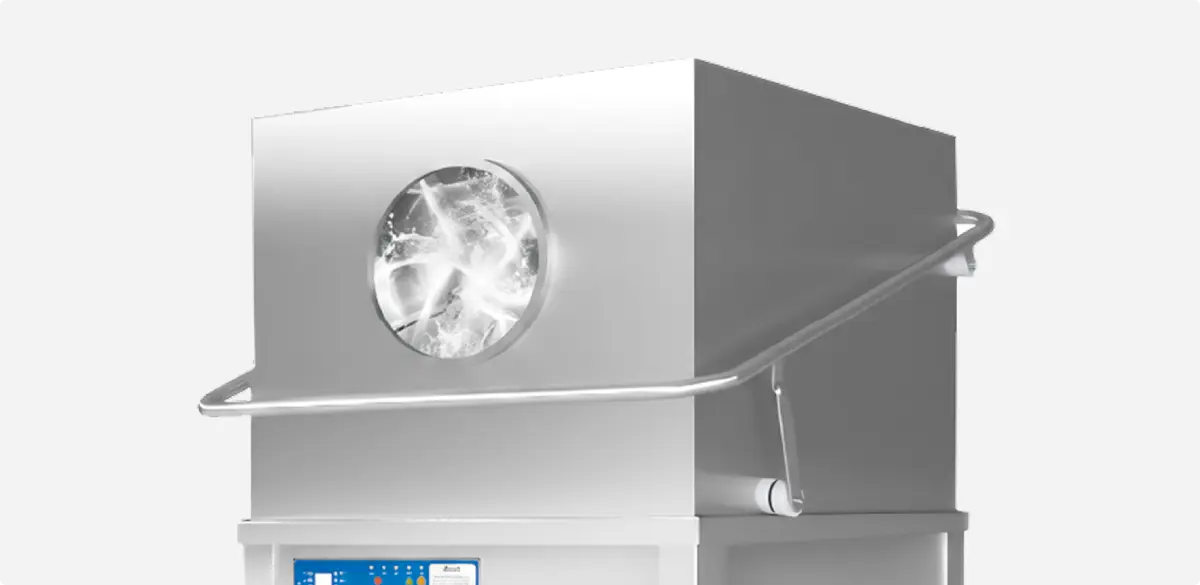

3. Rinse & Wash
1. Place tableware on the washing rack. 2. High-pressure rinse and wash.
Better Washing.
Better Results.
SMART Washing Module delivers fast, consistent
washing in a compact, integrated design.
Built to improve everyday kitchen efficiency.

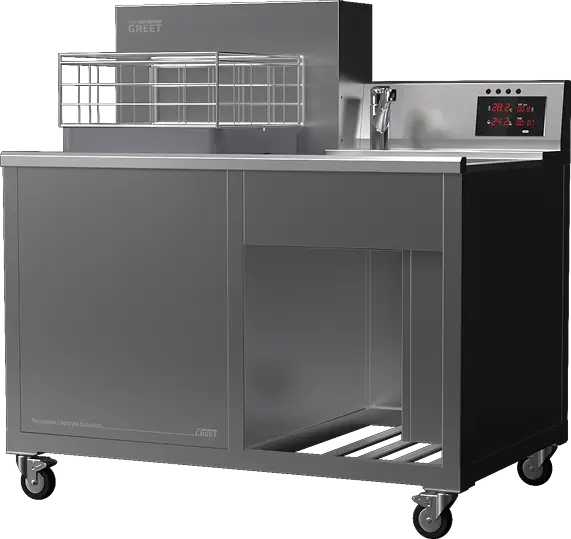

Reliable
Performance.
standard of ≤ 200 RLU.
residue after washing.
Cleaning performance has been evaluated through ATP testing and
detergent residue testing under controlled conditions.
These results provide measurable
indicators of washing performance.

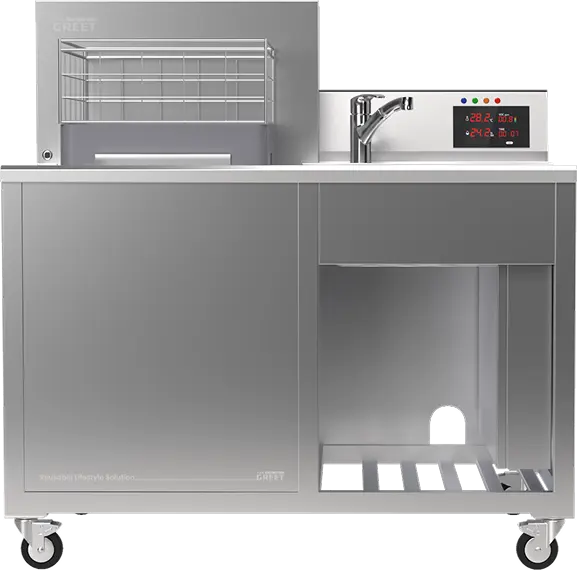

SPEC.
- Dimension
- (L)1,340mm x (D)840mm x (H)1,300mm
- Basin Depth
- 410 mm
- Installation
- Fits into an existing sink area
- Power Supply
- 220 V / 30 A, Approx. 6 kW (Single-phase)
- Material
- SUS working sections
- Capacity
- Soaking capacity : 30 items or more
- Pump / Drive Motor
- 0.75 kW Pump / 120 W Drive Motor
- Water Supply / Drainage
- Existing water and drainage connections
- Water Flow System
- 1.3 PS circulation motor / 16 outlets
- Control System
- Semi-automatic
- Heating System
- Dual heaters (3 kW + 2 kW) 20°C -> 60°C in approx. 30 min.
- Operating Noise
- 70 dB or less
